We own in-house mold design studio, injection molding workshop and silk-screen printing workshop. Full production processes are completed in our factory to support one-stop order fulfillment, efficiently control quality & lead time for your custom projects.
These video doorbell housings are specially engineered for US & EU markets, and proven hot-selling items on mainstream e-commerce platforms. Optimized appearance and size fit local consumer preferences perfectly.

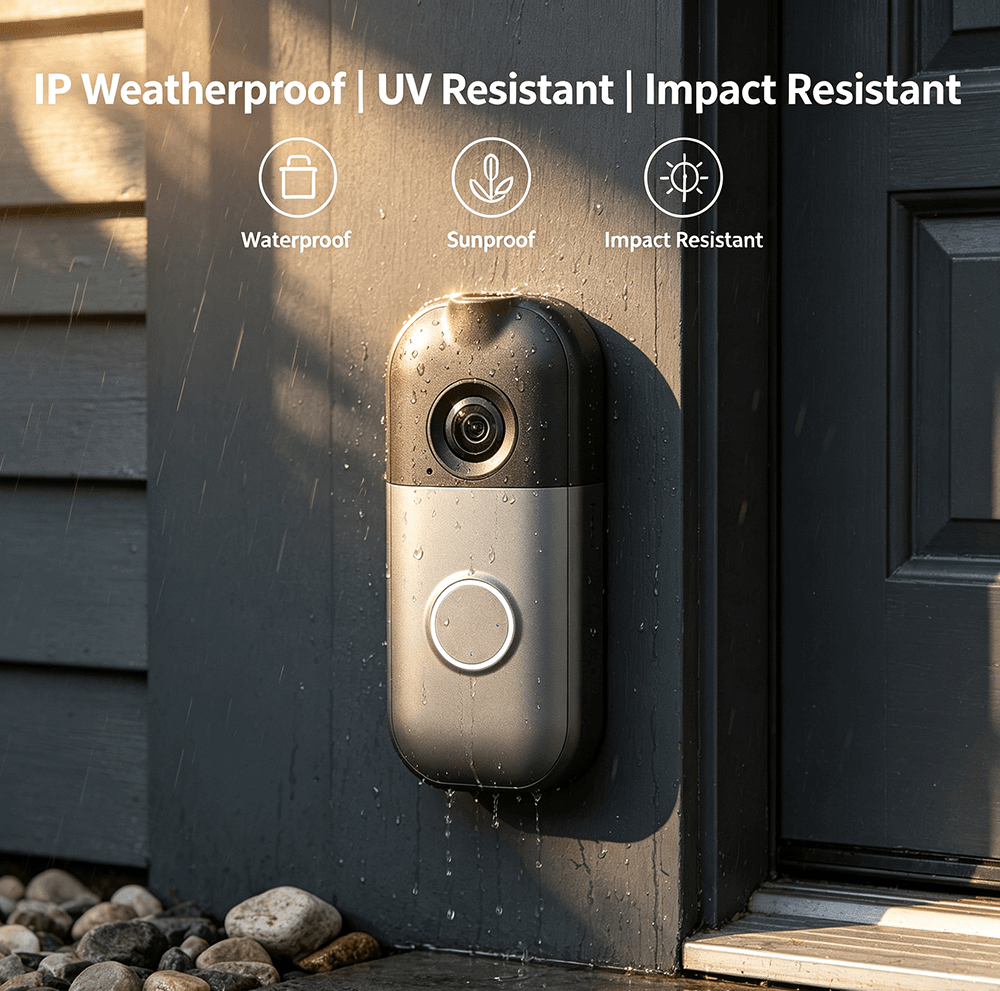

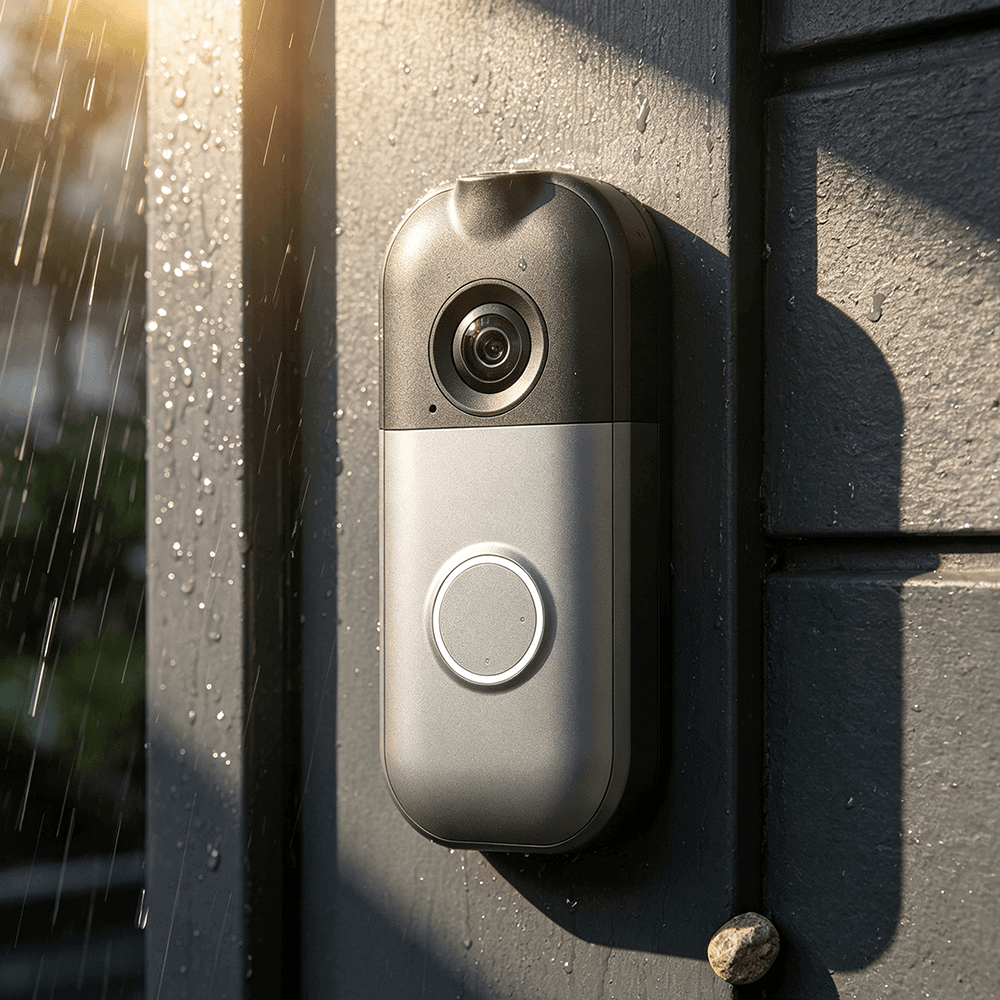

Video doorbells work exposed outdoors, requiring wind, rain and impact resistance. It demands precise mold structure design to achieve seamless assembly & good waterproof fit. We select high-toughness raw materials to guarantee UV resistance and impact protection for long-time outdoor use.

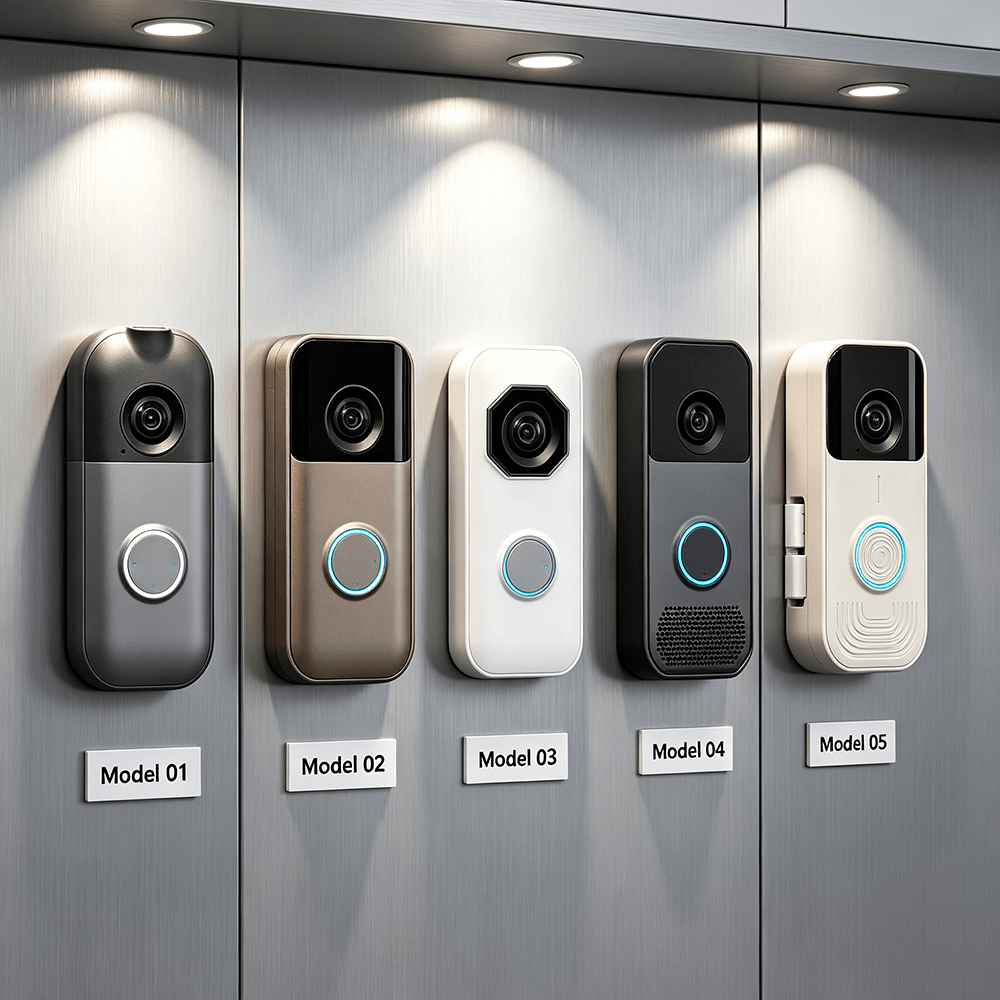

| Style | Style 1 | Style 2 | Style 3 | Style 4 | Style 5 |

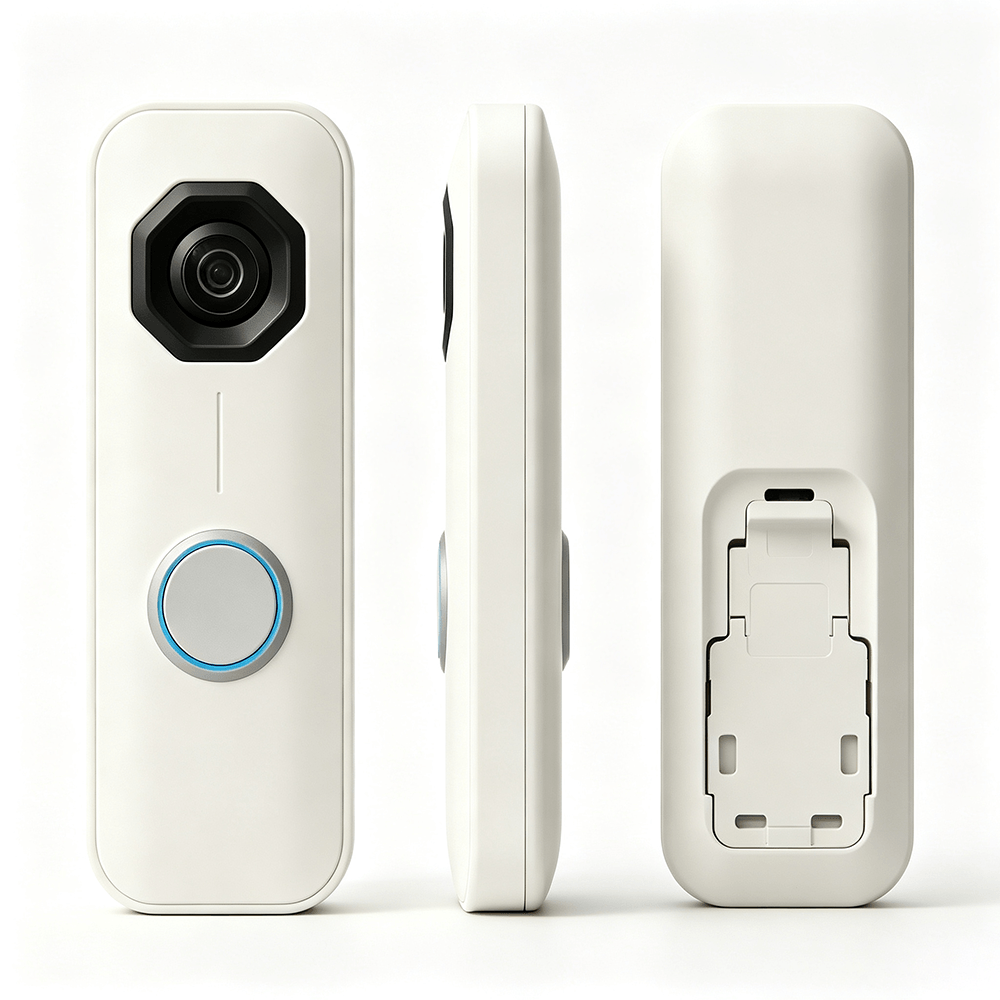

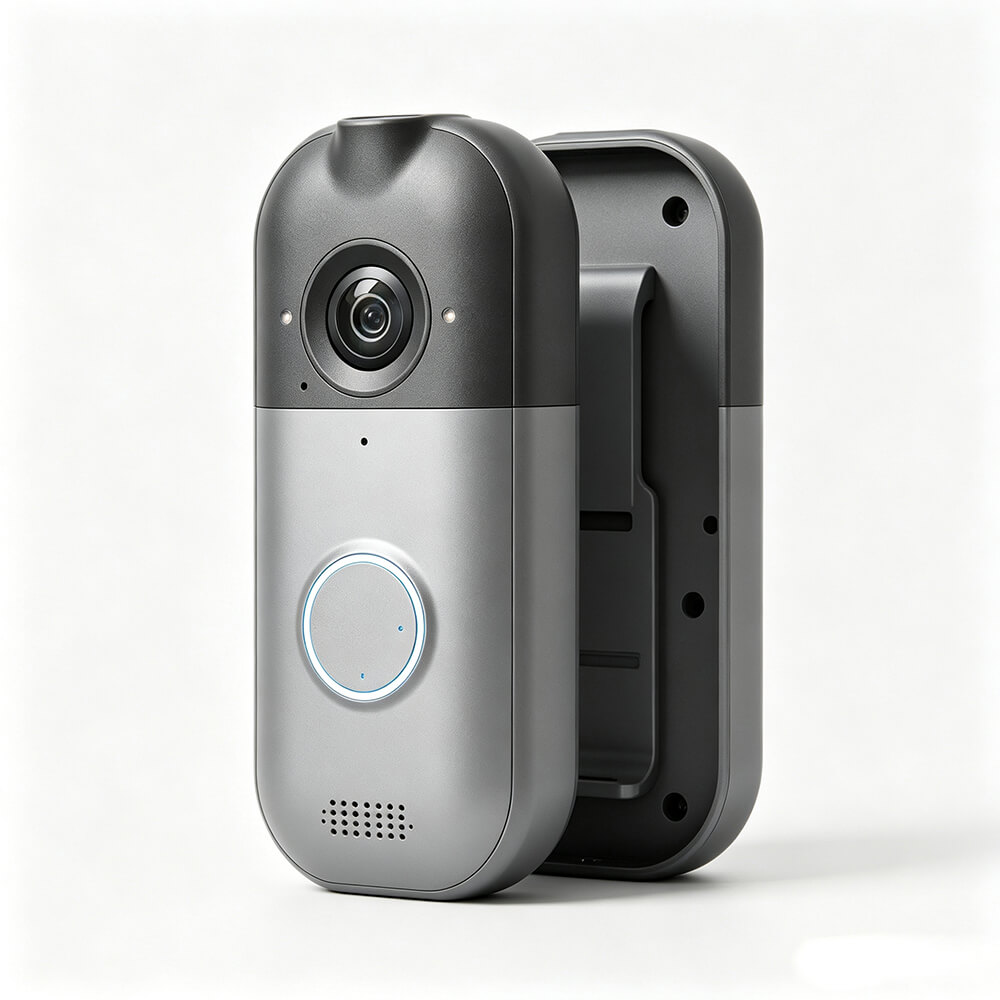

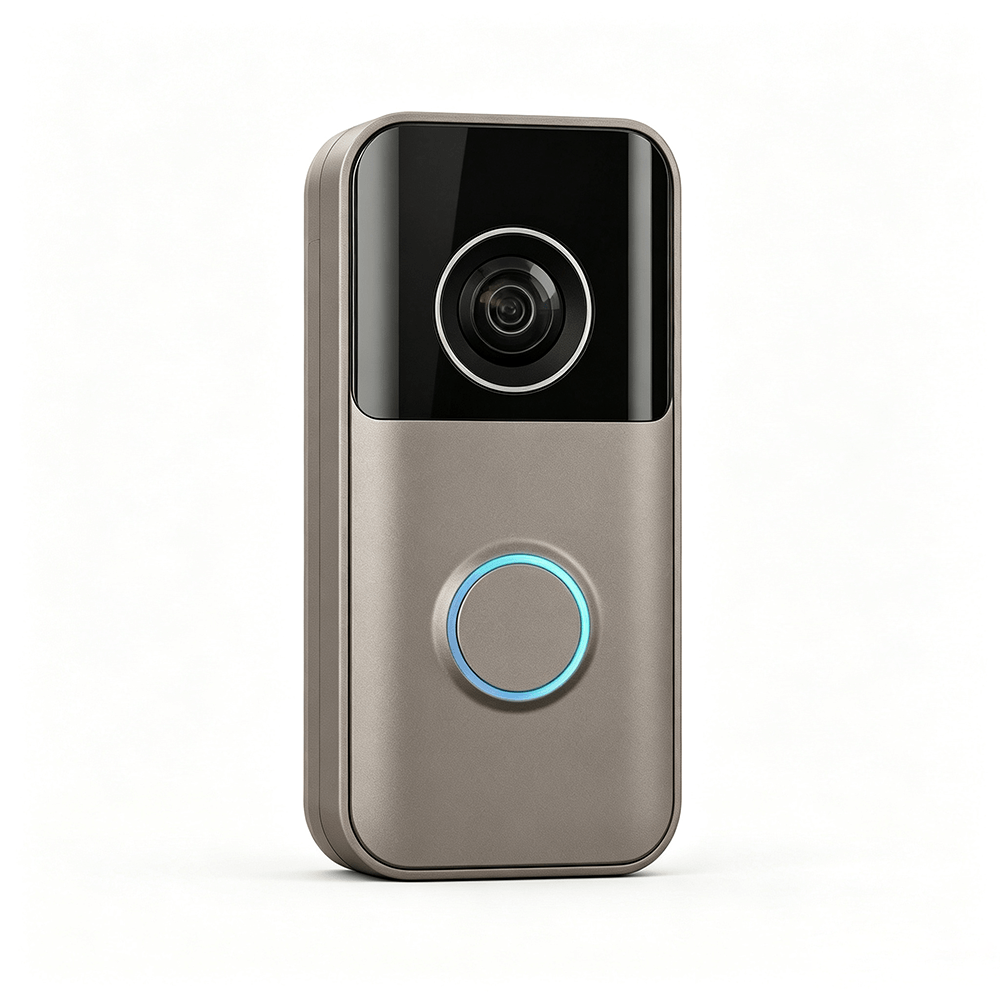

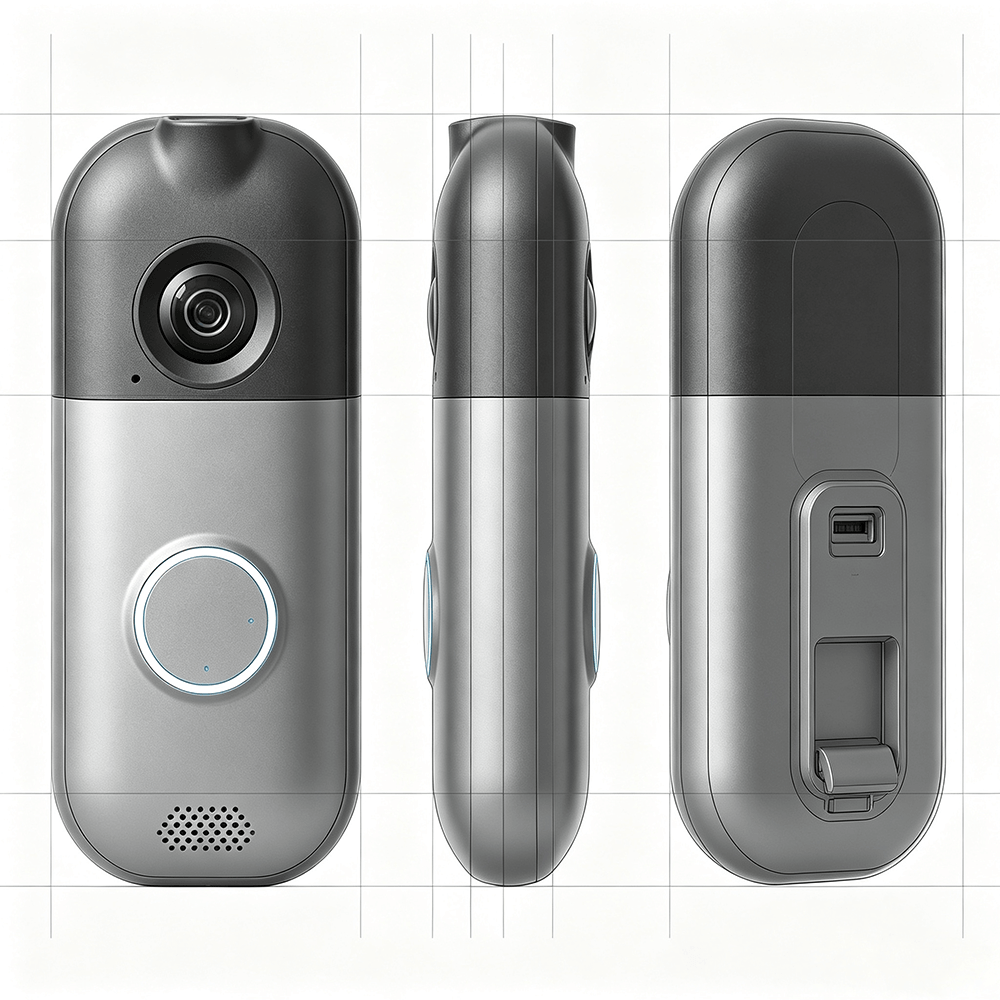

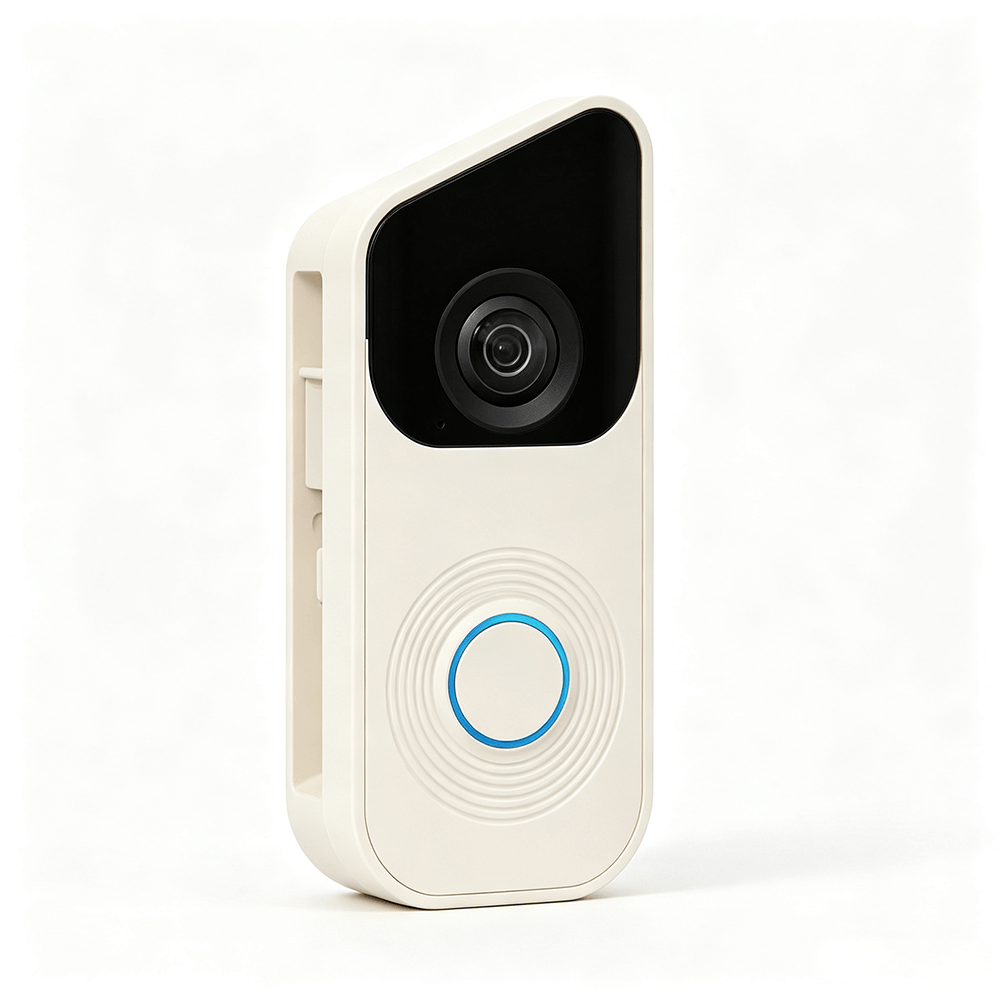

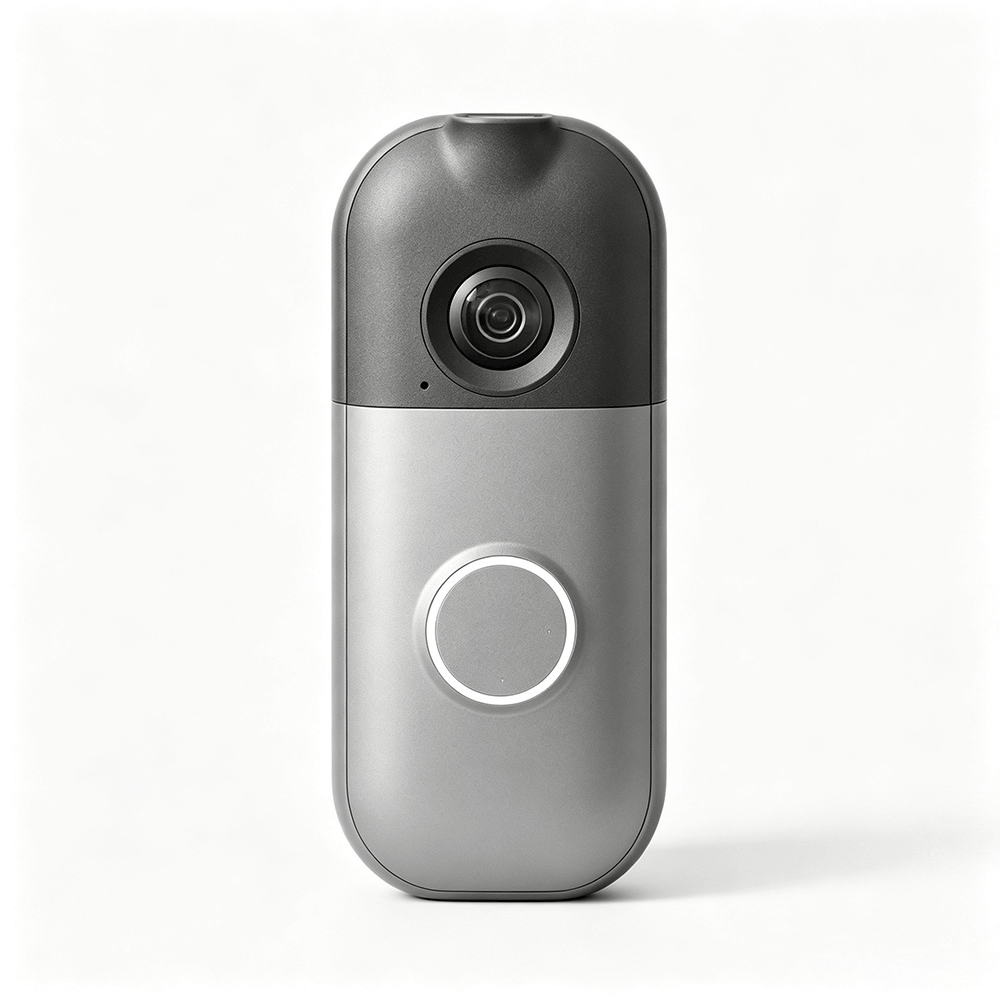

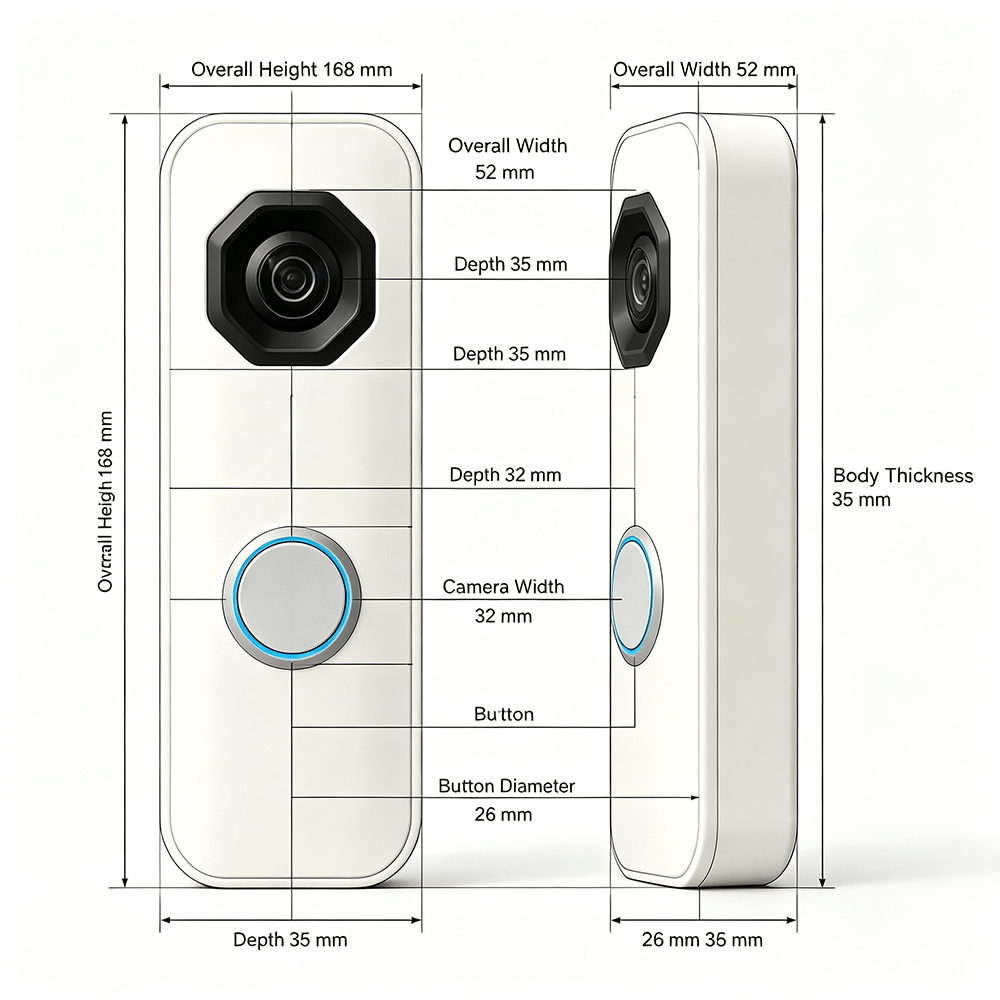

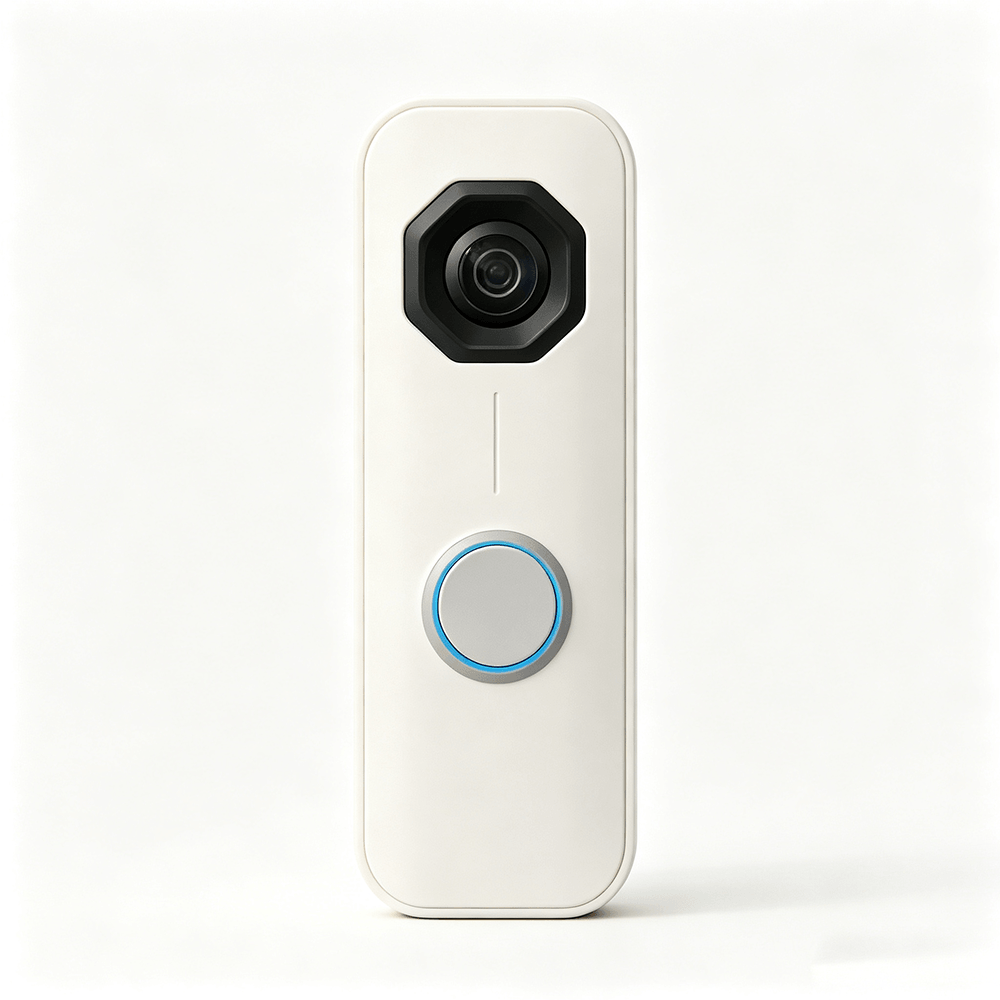

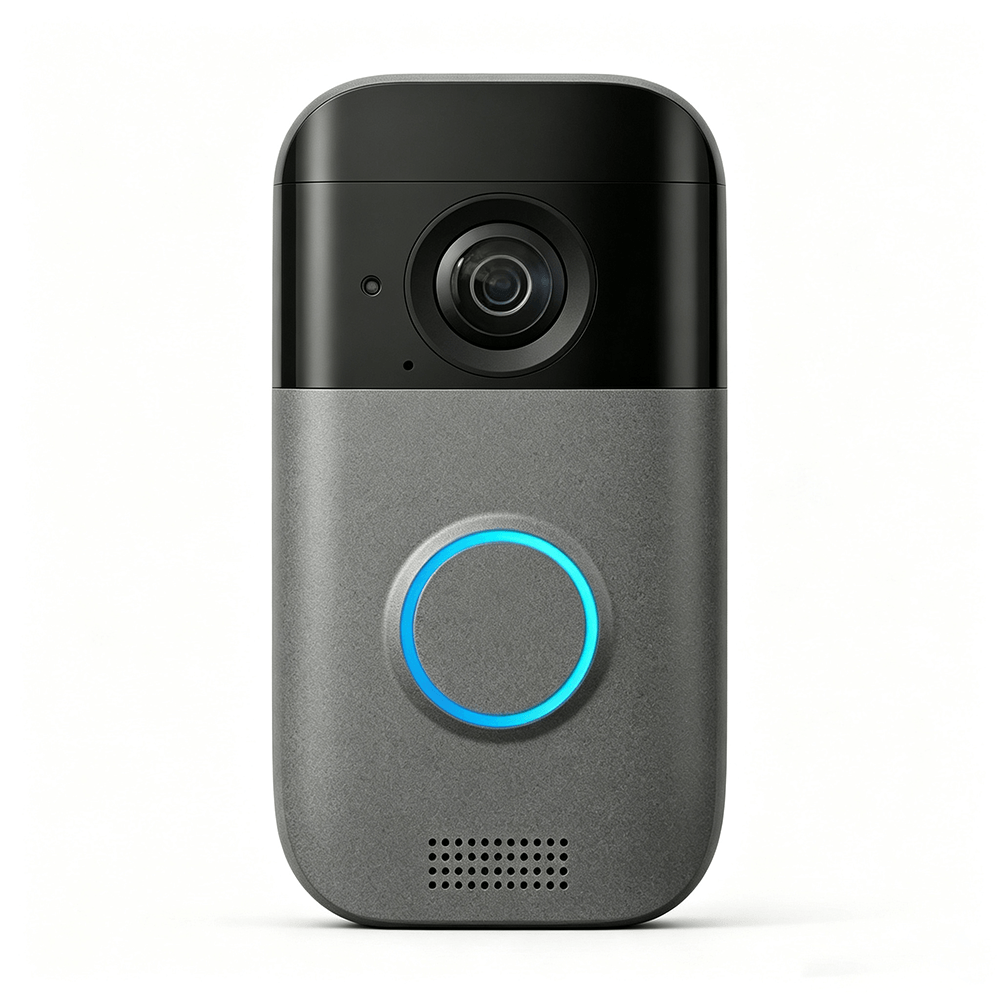

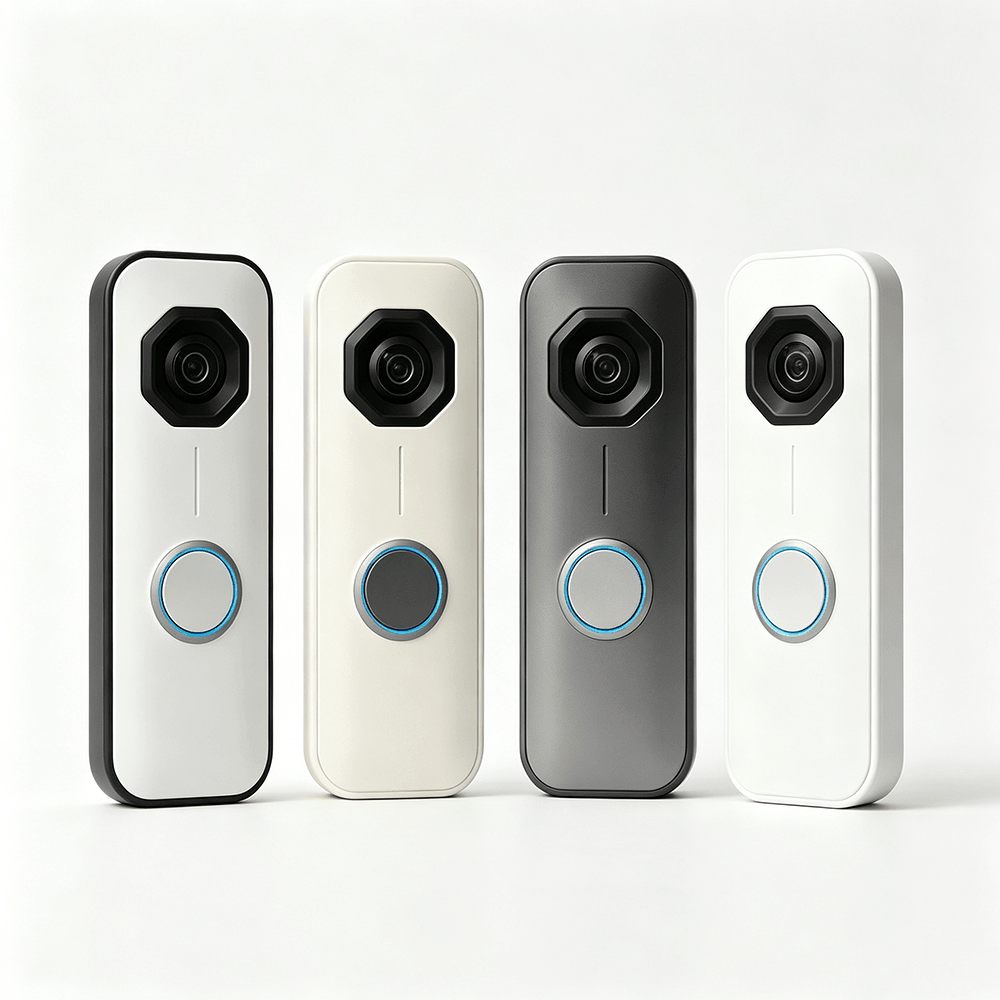

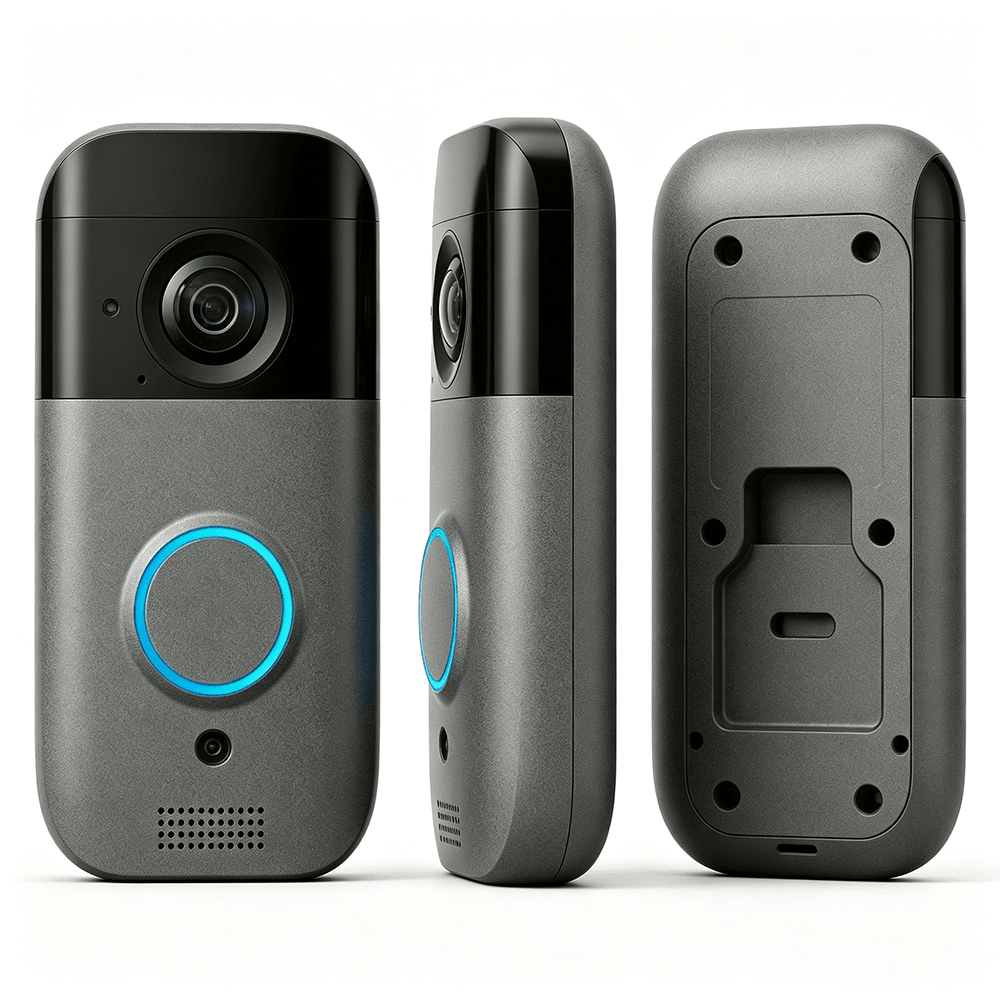

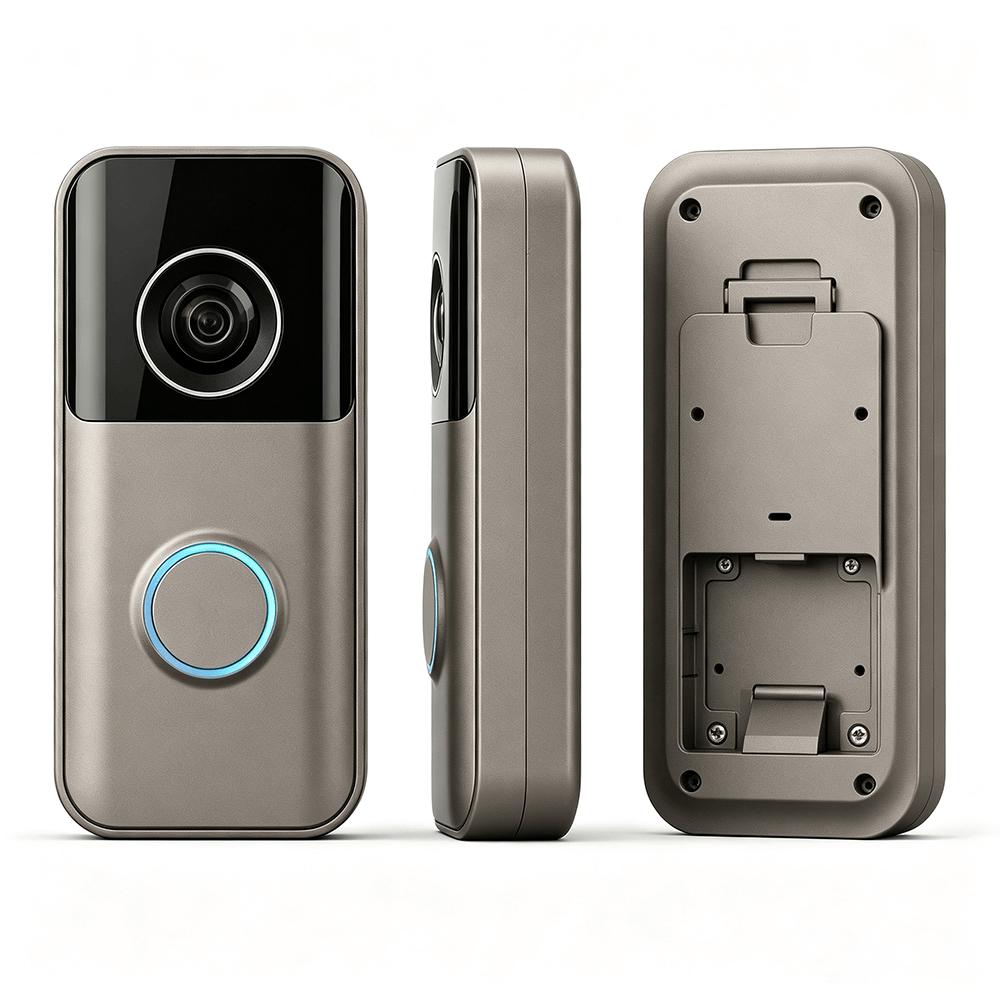

| Design Features / Shape | Slim vertical capsule-shaped housing; camera window at top front, round doorbell button in the middle, clean simple parting lines | Rounded-rectangle wide body; front/rear panels with slight curvature; square & rounded profile, easy to mold and mass produce | Short & wide horizontal design; slim white body with octagonal camera, modern and minimal | Grey rounded wide body with front speaker grille array; simple lines with angular layers | White multi-faceted / beveled contour, strong 3D layering, distinctive memorable appearance |

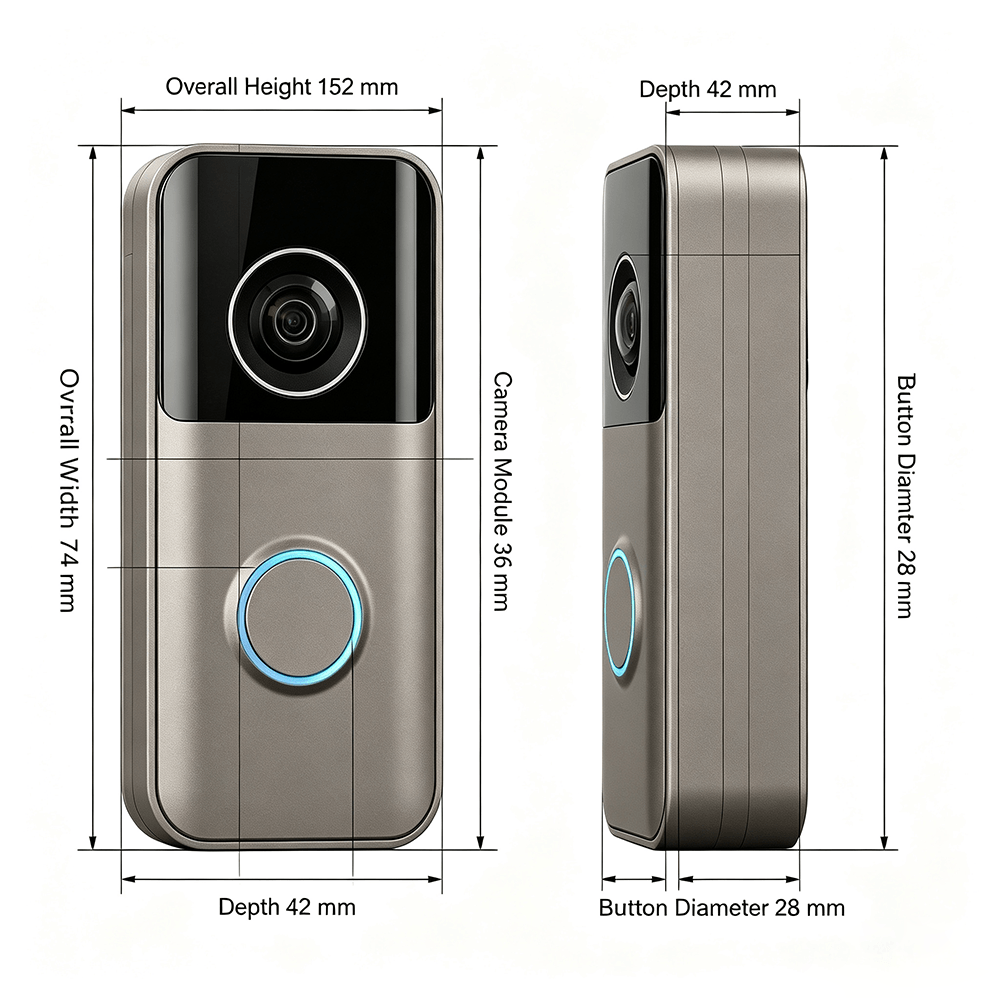

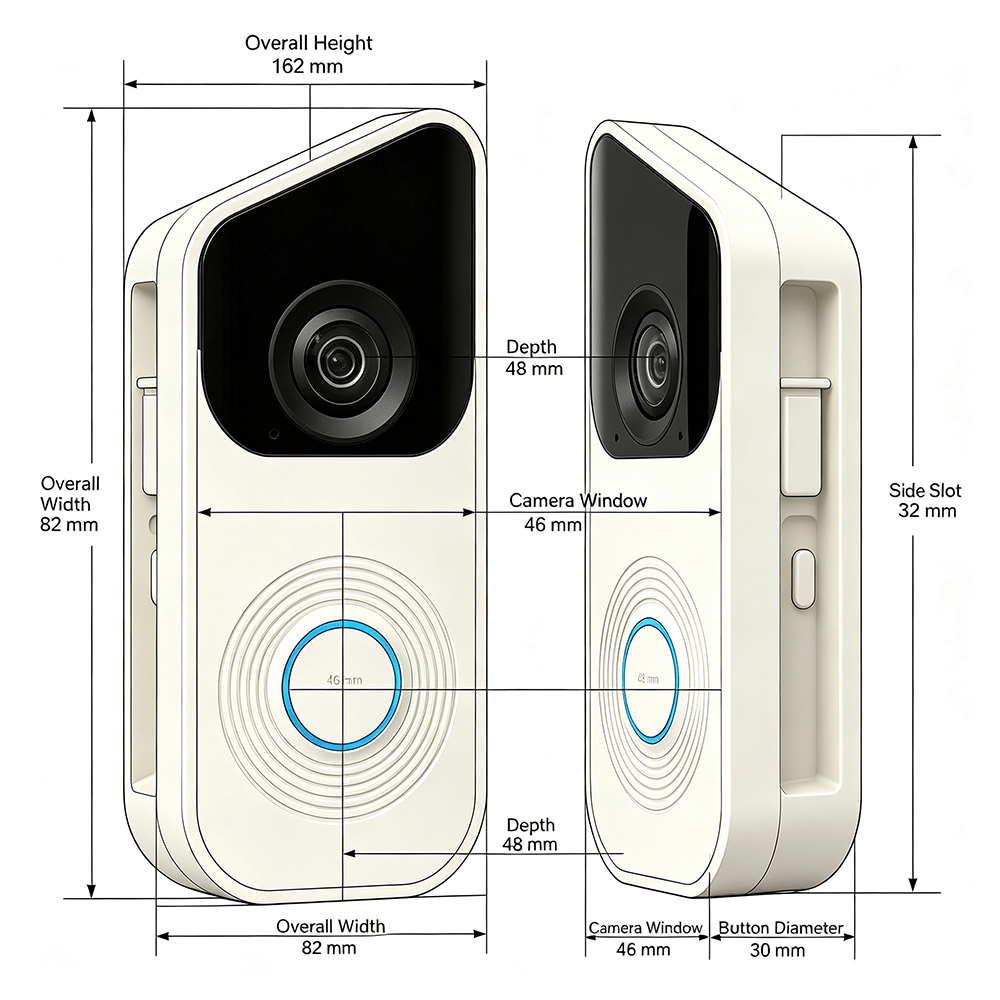

| Reference Dimensions (W×H×D mm) | approx 48×150×38 (reference) | approx 75×112×30 (reference) | approx 70×58×30 (reference) | approx 62×118×32 (reference) | approx 52×132×30 (reference) |
| Key Components | Top camera window, round button, IR fill light, speaker grille | Centered camera, ring indicator groove, bottom button, side speaker grille | Octagonal camera, long strip doorbell key, bottom microphone hole | Camera, ring button, front speaker grille, sensor window | Beveled camera, button, IR fill light, mounting bracket position |

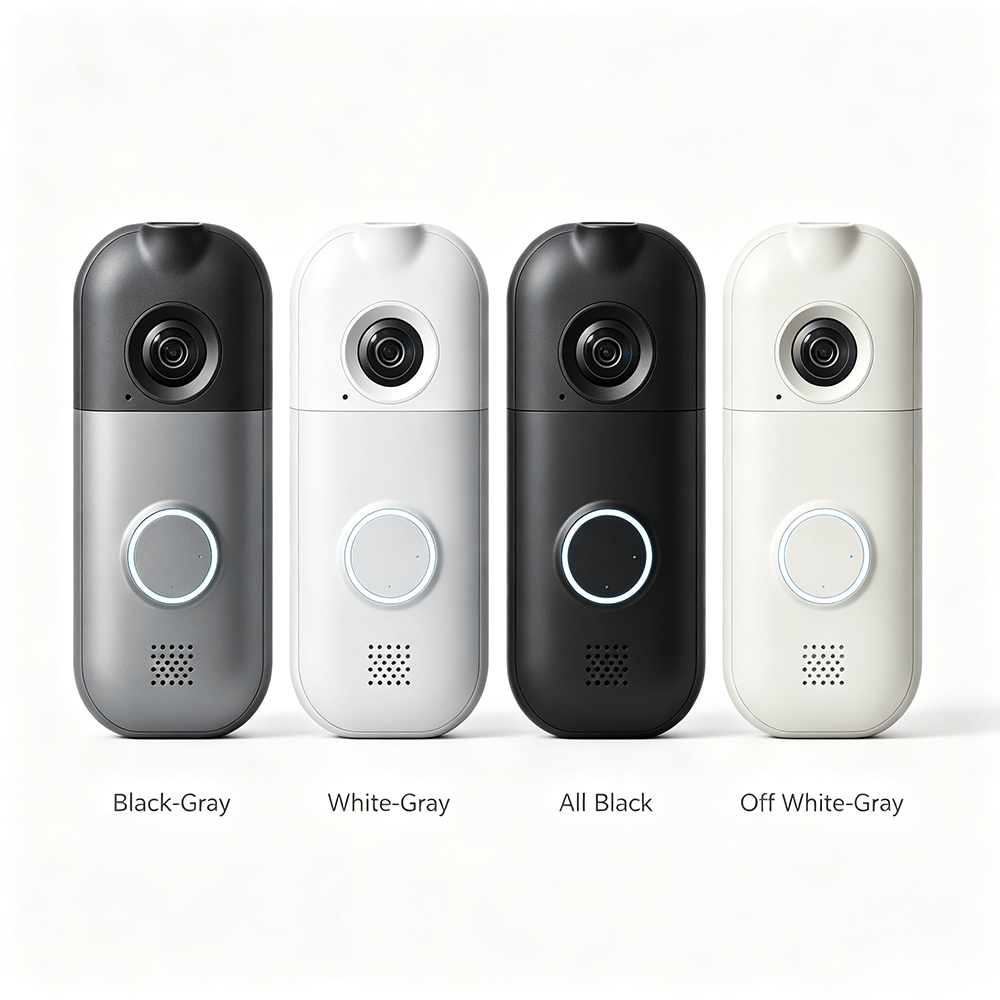

| Surface Finish / Colors | Black/silver-grey two-tone, matte + gloss | Metal-grey matte | White gloss + matte | Grey matte finish | White gloss two-tone, multi-faceted 3D |

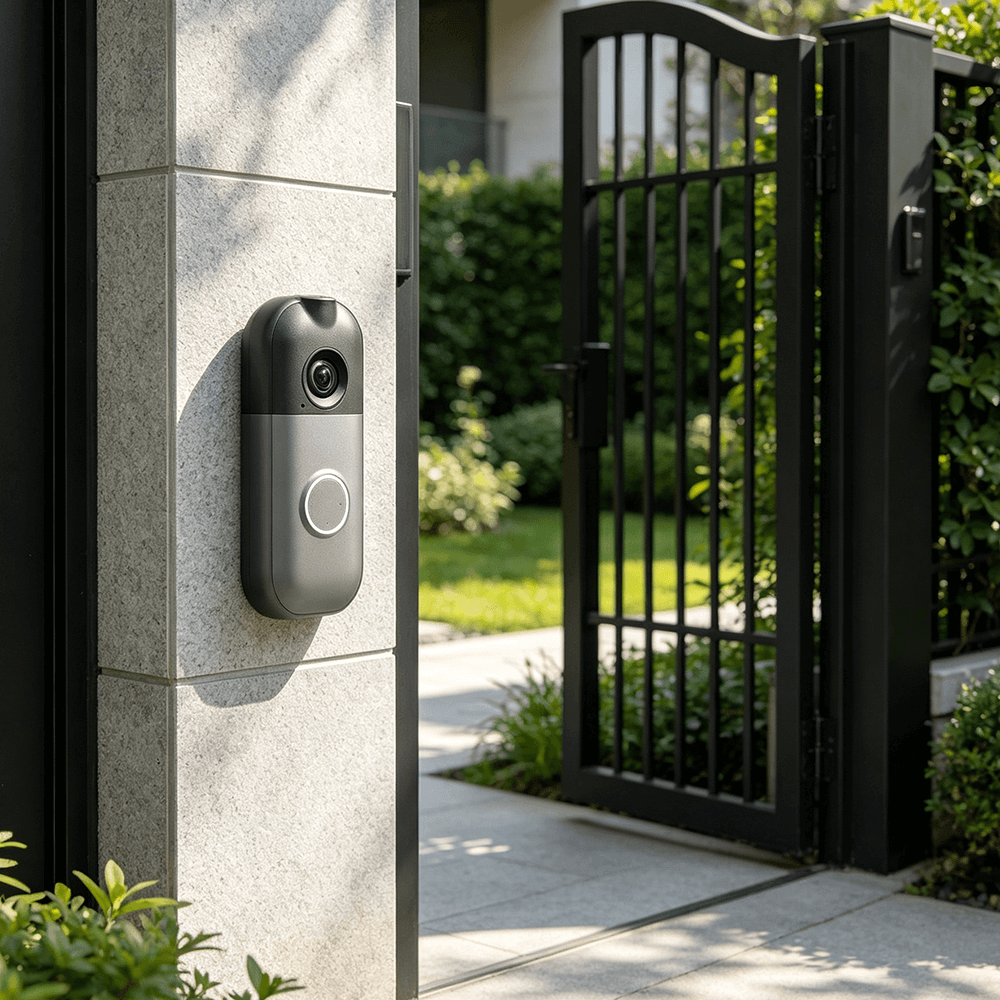

| Application Scenarios | Front doors, apartment entrances, villa main doors | Commercial/residential doors, garden gates, villa entrances | Modern minimal decoration, apartments, refined communities | Commercial access control, office buildings, factory entrances, villas | High-end residences, garden gates, homestays/commercial display |
| High-Traffic English Keywords | Video Doorbell Plastic Housing / Injection Mold Design / Injection Molding Plastic Enclosure | Curved Doorbell Plastic Casing / Custom Injection Mold Plastic Housing | Horizontal Doorbell Plastic Shell / Injection Molding Plastic Casing | Angular Doorbell Plastic Enclosure / Injection Mold Plastic Shell | Faceted Doorbell Plastic Housing / Custom Injection Mold Plastic Casing |
| Injection Molding Parameters (Wall Thickness / Parting Line / Material) | Wall: 2.0-2.5mm; Parting line: side ring split front/rear shell; Material: PC+ABS (flame-retardant grade) | Wall: 2.5-3.0mm; Parting line: three-piece split (middle frame + front/rear cover); Material: ABS or PC | Wall: 2.0-2.5mm; Parting line: horizontal front/rear shell split; Material: PC (UV-stabilized) | Wall: 2.5-3.0mm; Parting line: ring split front/rear shell + middle frame; Material: ABS | Wall: 2.0-2.5mm; Parting line: along contour beveled split; Material: PC+ABS |
| Core Selling Points | Classic vertical volume seller; good mounting compatibility; fits mainstream US/EU houses | Mature square-rounded mold, high yield rate, generous acoustic cavity | Novel horizontal short profile; targets minimal & modern style buyers | Wide body reserves acoustic cavity, loud sound; suited for intercom & commercial use | Distinctive design for attention; suited to high-end customers & custom projects |
