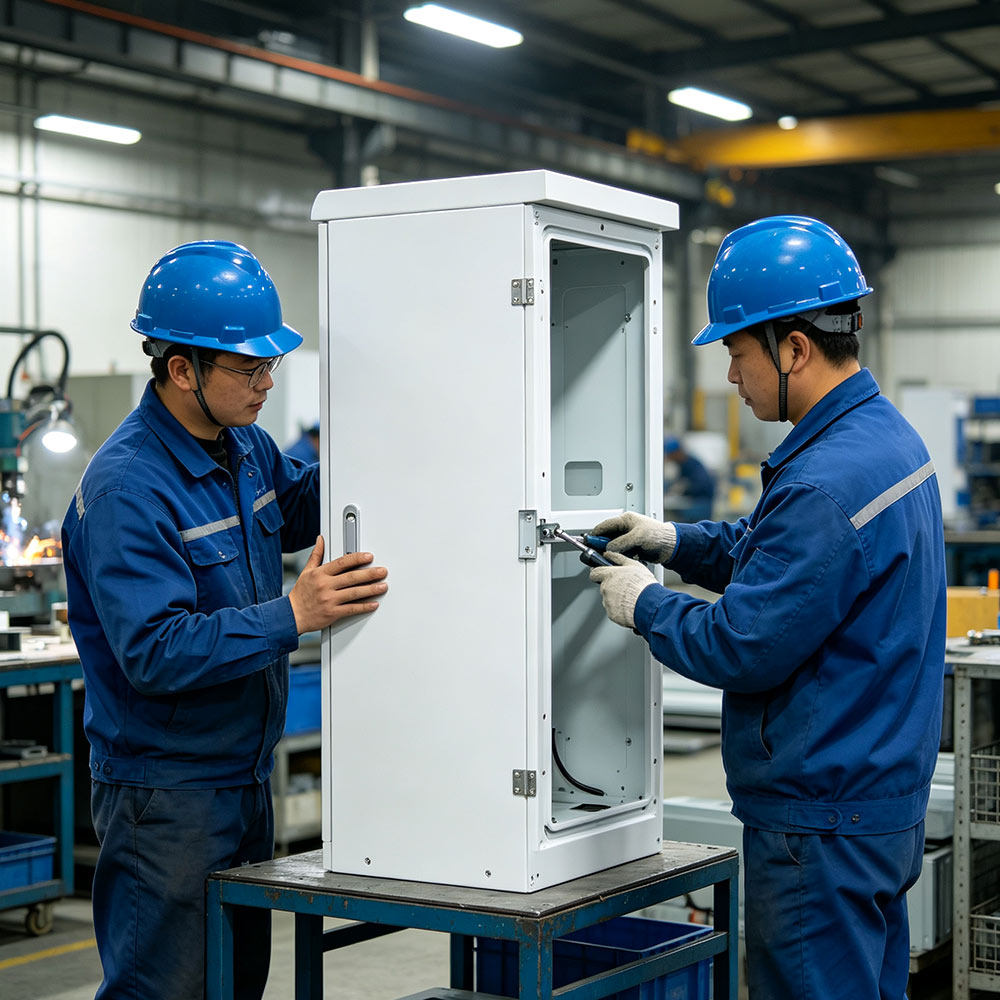

We are equipped with 5 laser cutting machines, 8 bending machines and more than 10 stamping presses. We own independent workshops for grinding, welding, surface treatment and silk-screen printing. With a team of skilled technicians, we can handle your orders with one-stop sheet metal fabrication service.
We have been deeply engaged in the sheet metal enclosure industry for many years. We possess rich manufacturing experience and mature technical capability to customize reliable metal housings for EV chargers and other industrial equipment.

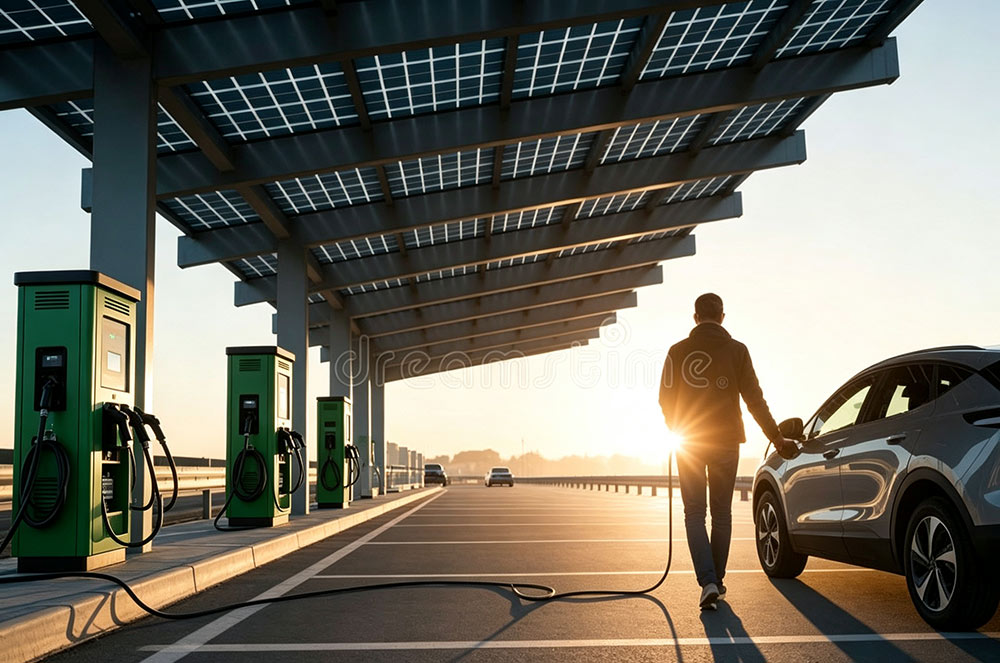

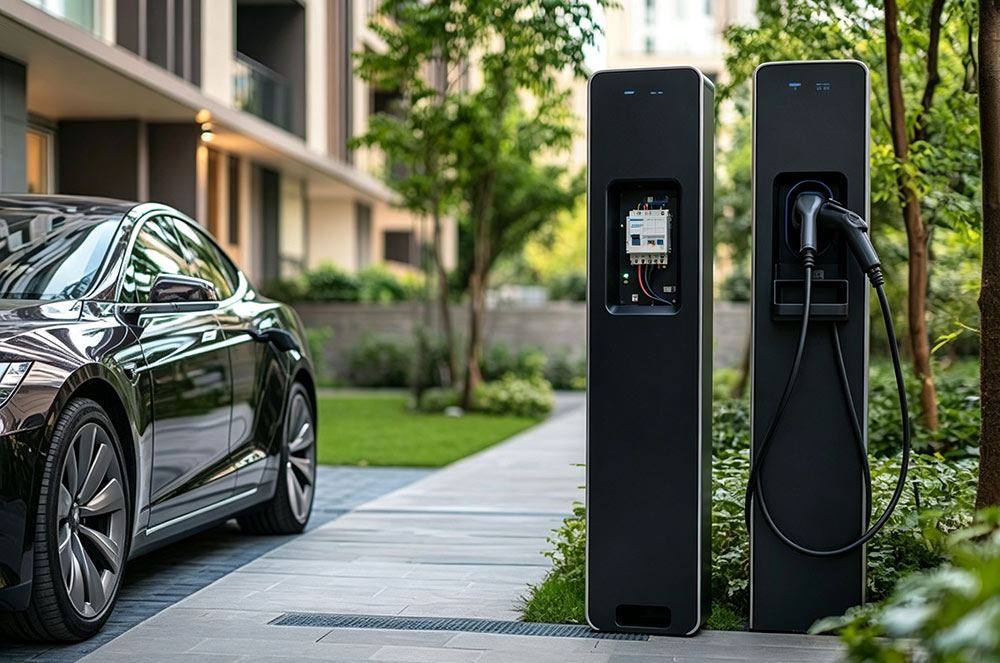

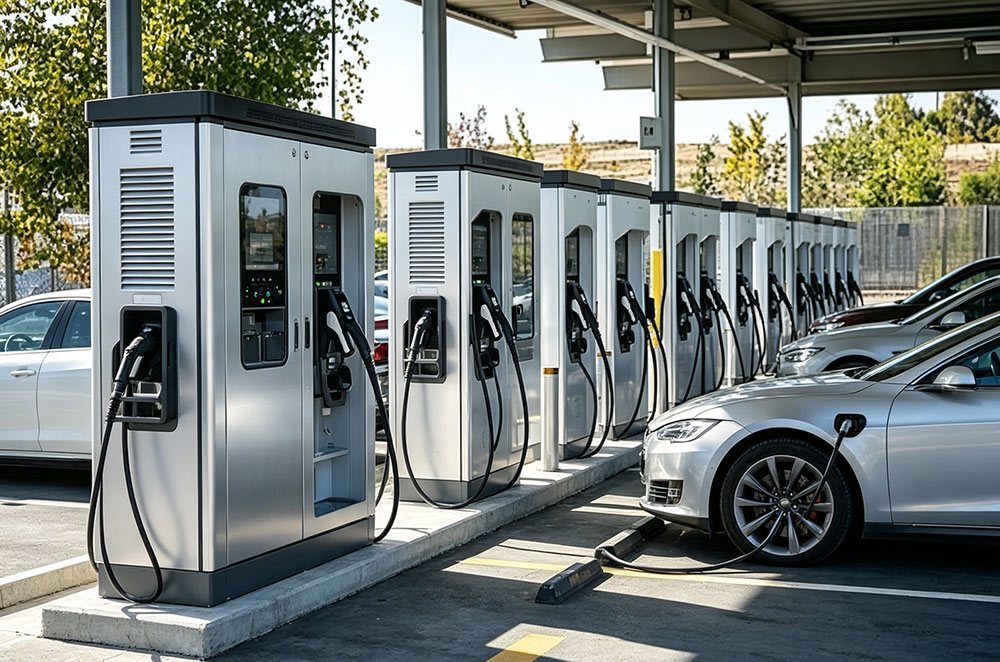

Outdoor charging stations enjoy promising market prospects. Driven by the rapid growth of new energy vehicles, demand for durable outdoor EV charging enclosures keeps rising for residential, highway and commercial charging projects worldwide.
| Category | Requirement Item | Specification / Details | Standard / Reference |
| Material Selection | Base Material | SPCC / SGCC cold-rolled or galvanized steel sheet | Thickness 1.2~2.5mm, corrosion-resistant steel for outdoor use |
| Alternative Material | 304 stainless steel / 6061 aluminum alloy | Recommended for coastal or high-humidity areas | |
| Surface Treatment | Outdoor-grade powder coating | Anti-rust, anti-corrosion, weather-resistant; optional anti-UV coating | |
| Sealing Material | EPDM rubber gasket / silicone sealant | For IP sealing at door gaps & cable entries | |
| Fasteners | Stainless steel screws, bolts & rivets | Corrosion-resistant hardware for outdoor exposure | |
| Structural Requirements | Fabrication Process | Laser cutting + CNC bending + welding | Precise dimensional tolerance, smooth & clean weld seams |

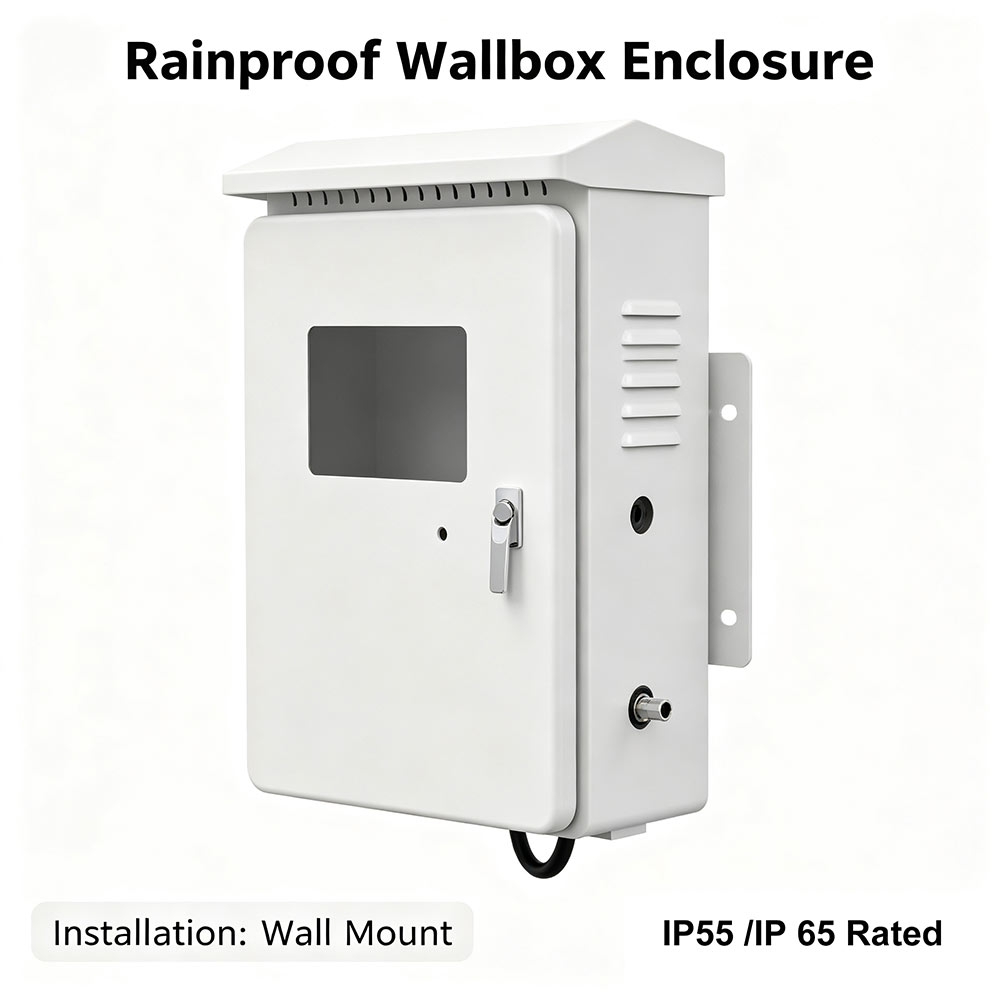

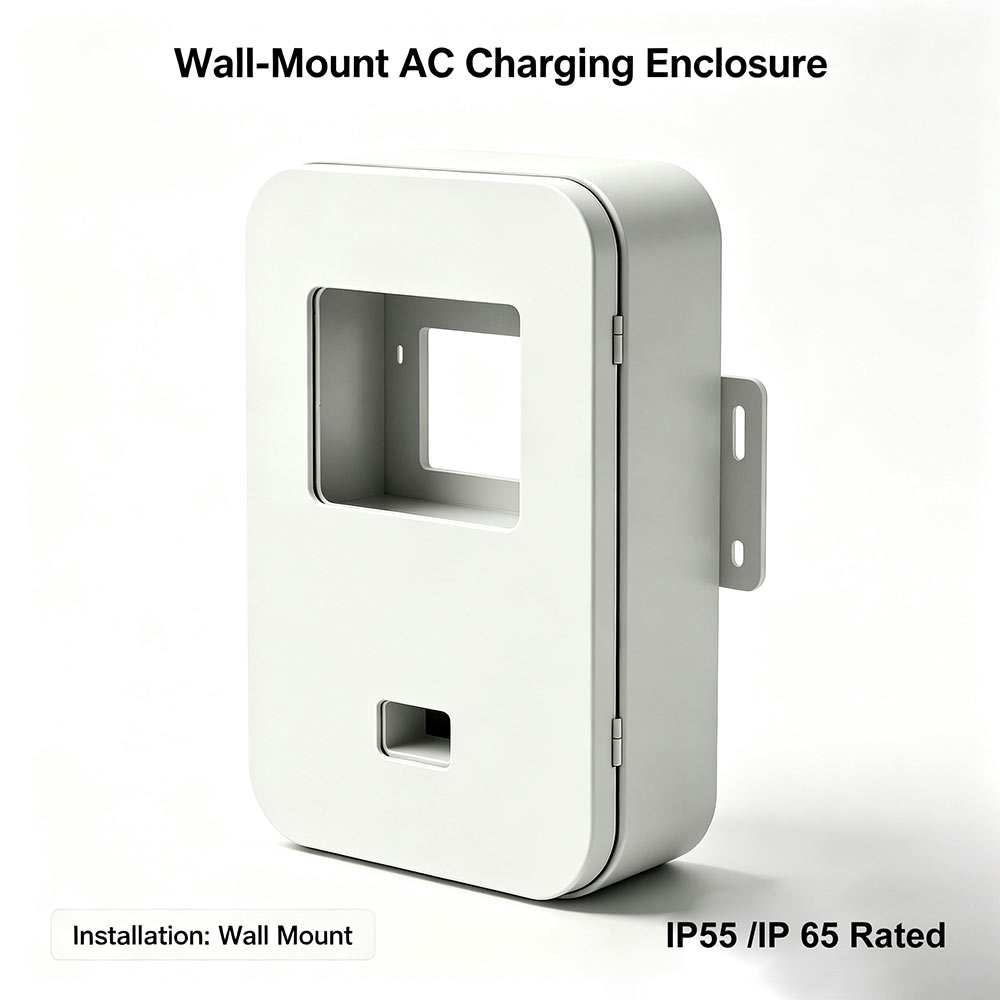

| Mounting Design | Integrated wall / pole mounting bracket & hanging ears | Load-bearing, safe and stable installation | |
| Cable Entry | Reserved cable glands / knockouts | For incoming & outgoing cables; optional IP-rated glands | |
| Door Design | Lockable front door with heavy-duty hinges | Anti-theft lock, easy access for maintenance | |
| Cutouts & Openings | Reserved cutouts for display, charging gun socket, buttons & terminals | Custom layout available per request | |
| Ventilation | Side / rear louvers for heat dissipation | Sufficient airflow for internal components | |
| Internal Structure | Mounting rails / brackets for internal modules | Support controller, meter & other accessories | |
| Protection Requirements | IP Rating | IP54 ~ IP65 | Dust & water ingress protection |
| Corrosion Protection | Powder coating + anti-rust primer | Long-term outdoor durability | |
| UV Resistance | UV-stable coating | Prevent fading & material degradation under sunlight | |
| Weather Resistance | Withstand rain, snow, high/low temperature & humidity | All-season outdoor use | |
| Impact Protection | Mechanical strength / IK rating | Resistant to accidental impact & vandalism | |
| Earthing | Grounding terminal provided | Electrical safety compliance | |
| Anti-tamper | Security screws & locking system | Anti-theft, prevent unauthorized access |
